Programmable Controllers MELSEC-A Series
Renewal
Utilize the existing network cables to build MELSECNET/H network system
Upgrade exampleMELSECNET/H Network module (twisted bus type)
Supported series:

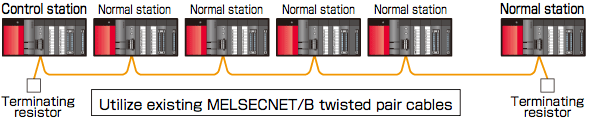

Utilize the existing network cables to build the MELSECNET/H(10) network system
The existing twisted pair cables of the MELSECNET/B data link system can be used to build the MELSECNET/H network system when replacing the AnS/QnAS Series modules or the A/QnA Series modules with the Q Series modules. Modules are replaced without modifying the previously laid network cables. A network system with an even higher speed can also be configured by replacing the twisted pair cables with CC-Link cables.
| Model | Outline |
|---|---|
| QJ71NT11B | MELSECNET/H network module (twist bus type) |
Related documents
 |
| Programmable Controllers MELSEC-A/QnA (Large), AnS/QnAS (Small) Transition Examples |
| 2021-12 |
 |
| Transition from MELSEC-A/QnA (Large Type), AnS/QnAS (Small Type) Series to Q Series Handbook (Network Modules) |
| 2023-09 |
