MELSERVO-J5 Series Servo Amplifier

Ready to maximize your system performance? Request a Quote Contact Sales

Progressiveness

Concept

Progressiveness
Heritage
CC-Link IE TSN-Compatible Servo Amplifiers

Features of MR-J5-G Servo Amplifiers

Features of CC-Link IE TSN-Compatible Servo Amplifiers

MR-J5-G/MR-J5W-G/MR-J5D-G4 servo amplifiers can connect to CC-Link IE TSN to perform high-speed, high precision control.
The performance and the functions have been greatly improved, contributing to innovative evolution of the machines.

  • Features the minimum communication cycle of 31.25 μs to perform high-speed, high-precision control

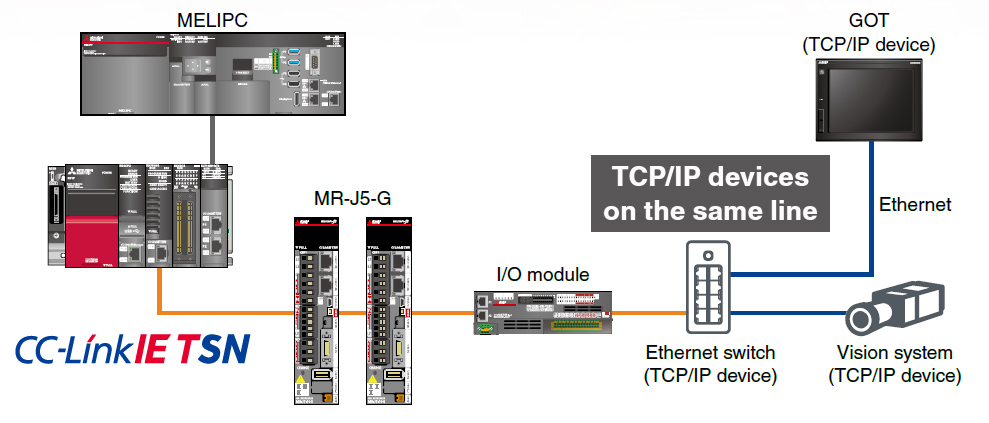

  • Allows both control communication and information communication on one network and thus enables a flexible system
  • Sends and receives large amounts of data, such as recipe data with a high-speed, large-capacity 1 Gbps communications network
Speed frequency responseMinimum communication cycleEncoder
Features of CC-Link IE TSN-Compatible Servo Amplifiers
  • *1. MR-J5-G/MR-J5D1-G4 support 31.25 μs.

Features safety communications via CC-Link IE TSN

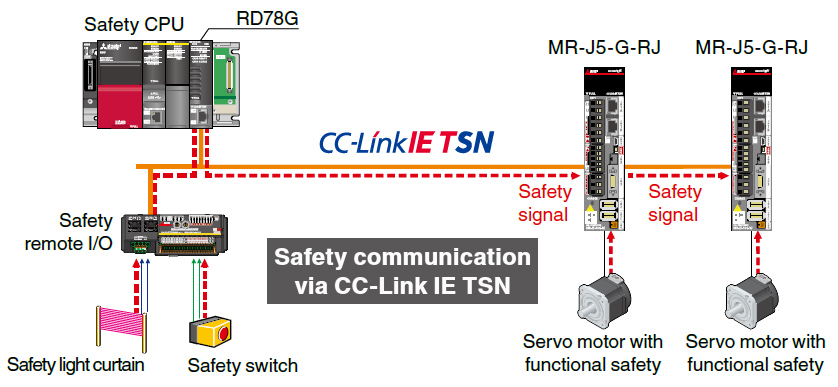

Safety communication via CC-Link IE TSN

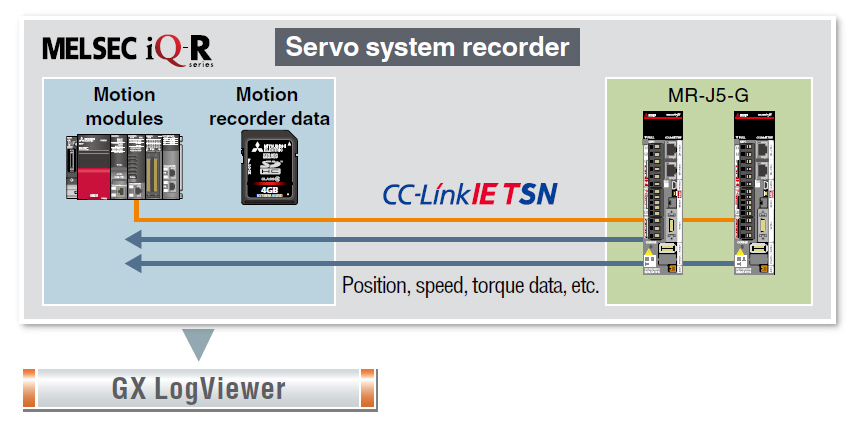

Servo system recorder

MELSEC iQ-R series Motion modules collect data of servo amplifiers when an error occurs.

Servo system recorder

Compatible Servo System Controllers

RD78GH
MELSEC iQ-R Series

Motion module

RD78GHV
RD78GHW

RD78G
MELSEC iQ-R Series

Motion module

RD78G4
RD78G8
RD78G16
RD78G32
RD78G64

FX5-40SSC-G
MELSEC iQ-F Series

Motion module

FX5-40SSC-G
FX5-80SSC-G

SWM-G

Personal Computer
Embedded Type
Servo System Controller

SWM-G

SSCNET III/H-Compatible Servo Amplifiers

Features of MR-J5-B Servo Amplifiers

Features of SSCNET III/H-Compatible Servo Amplifiers

MR-J5-B/MR-J5W-B servo amplifiers can connect to SSCNET III/H and utilizes the existing program assets to improve the performance of the machines.
Transition from MELSERVO-J4 series to MELSERVO-J5 is supported.

  • Allows the user to build a MELSERVO-J5 series servo system that utilizes the existing assets of Motion controllers and Simple Motion modules
  • Enables function improvement of the machines
Speed frequency responseEncoder
Features of SSCNET III/H-Compatible Servo Amplifiers

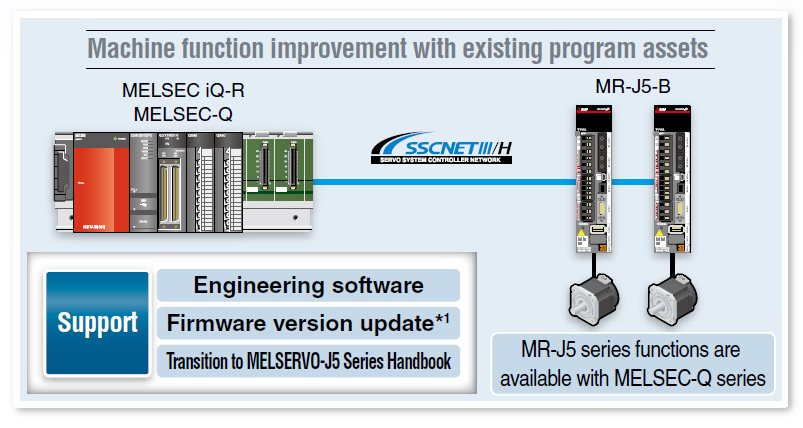

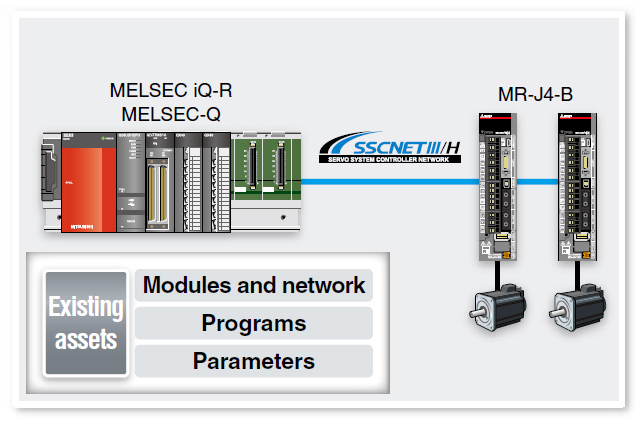

Machine function improvement with existing program assets
  • *1. The Motion controller with the updated firmware supports MR-J5-B.

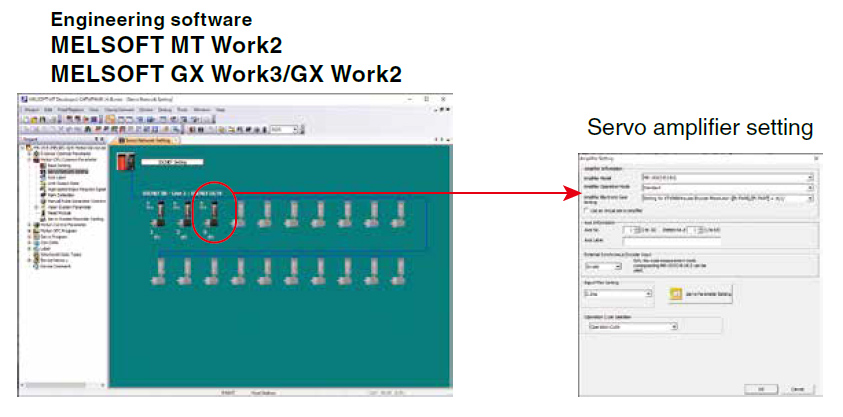

Servo Parameter Conversion

Changing the servo amplifier setting from MR-J4-B to MR-J5-B converts the parameters.

Servo Parameter Conversion

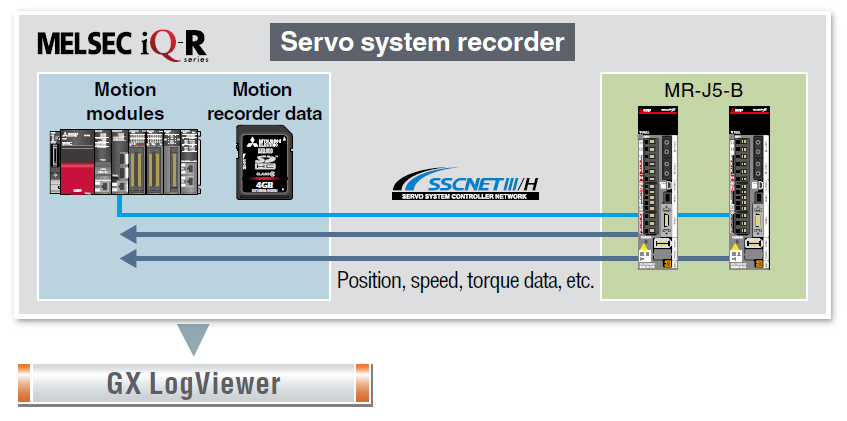

Servo System Recorder

MELSEC iQ-R series Motion modules collect data of servo amplifiers when an error occurs.

Servo System Recorder

Compatible Servo System Controllers

R16MTCPU
MELSEC iQ-R Series

Motion
controller

R16MTCPU
R32MTCPU
R64MTCPU

RD77MS2
MELSEC iQ-R Series

Simple
Motion module

RD77MS2
RD77MS4
RD77MS8
RD77MS16

Q172DSCPU
MELSEC iQ-F Series

Motion
controller

Q172DSCPU
Q173DSCPU

QD77MS2
MELSEC iQ-F Series

Simple
Motion module

QD77MS2
QD77MS4
QD77MS16
