MX Controller Series Overview

img-mv-1-sm

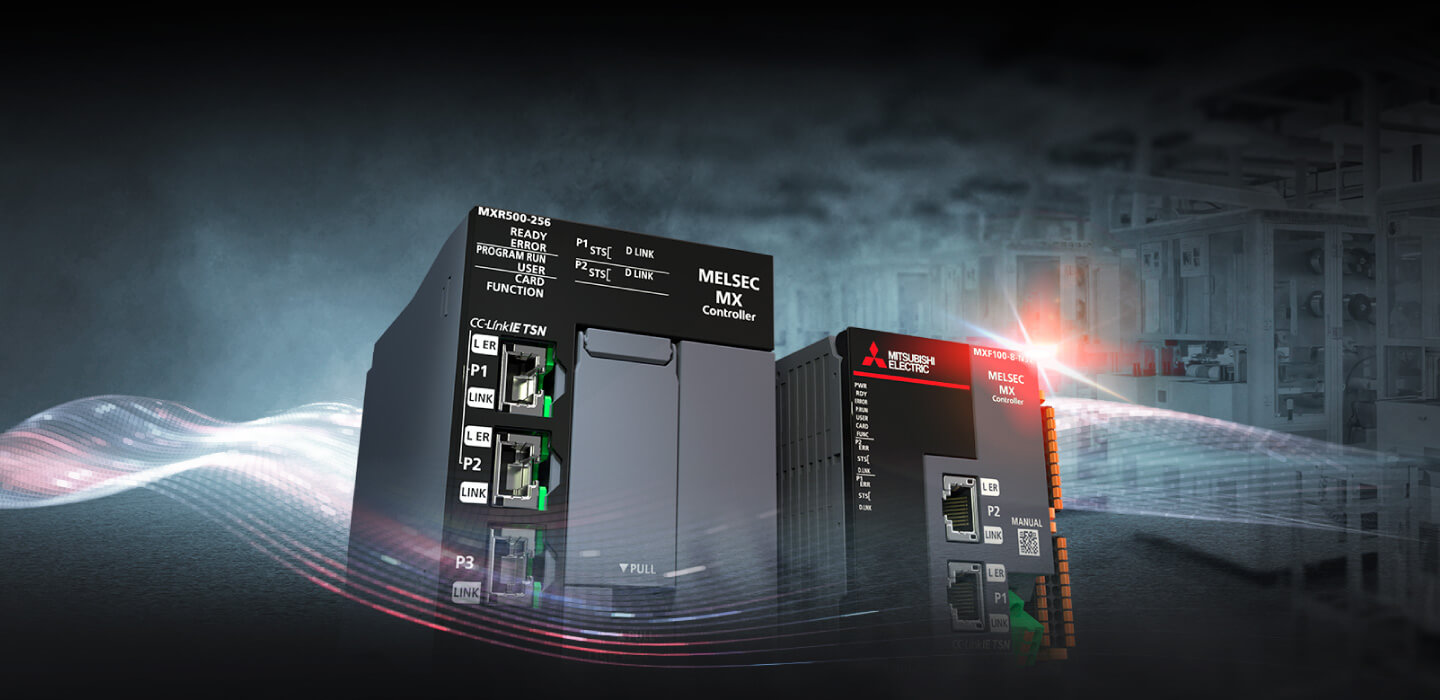

All-in-One Sequence, Motion, and Network Automation Controller

Introducing the long-awaited new MELSEC series!

The Mastermind of Manufacturing

New programmable automation controller by Mitsubishi Electric!

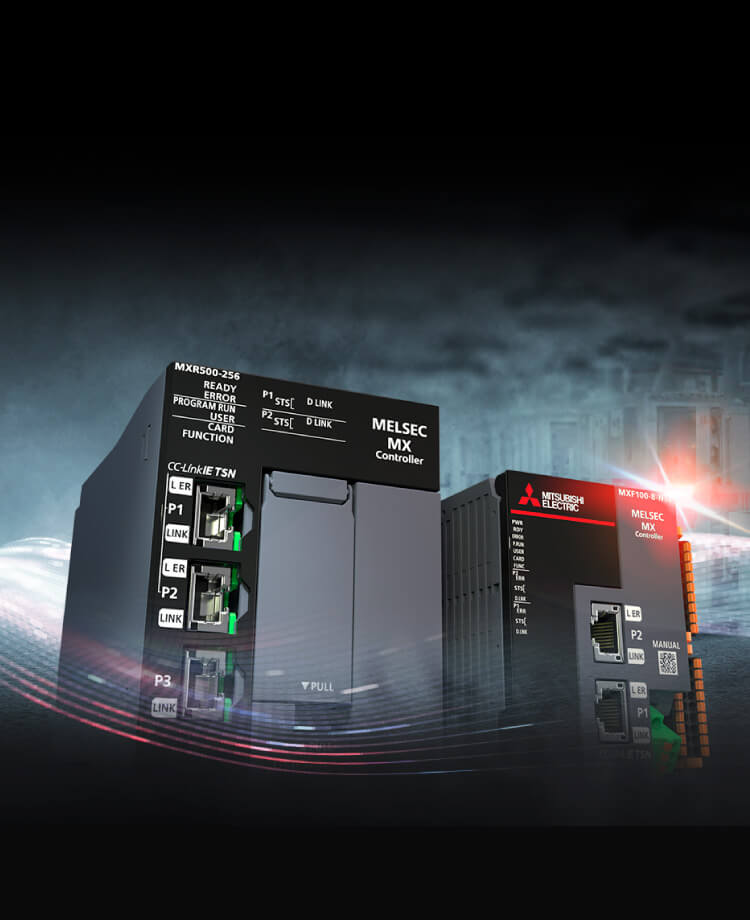

MELSEC MX Controller

MX-R model
MX-F model
  • MXR300-16
  • MXR300-32
  • MXR300-64
  • MXR500-128
  • MXR500-256

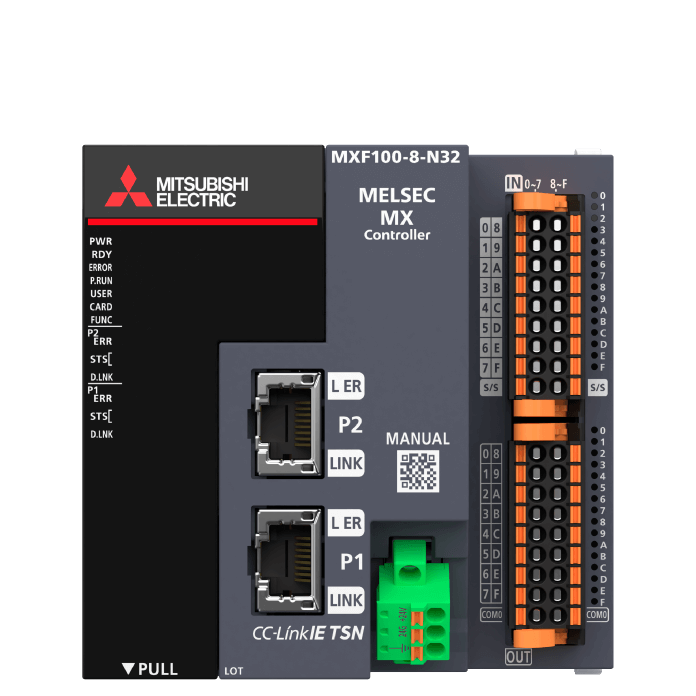

  • MXF100-8-N32
  • MXF100-8-P32
  • MXF100-16-N32
  • MXF100-16-P32
Compare features between the MX-R and MX-F models

Features

Contents

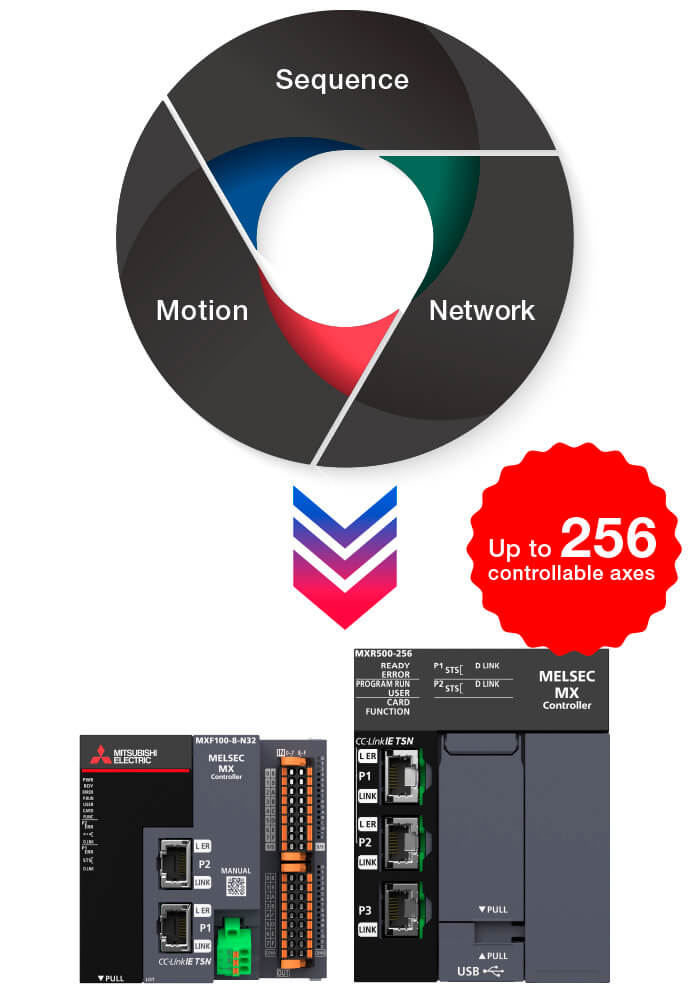

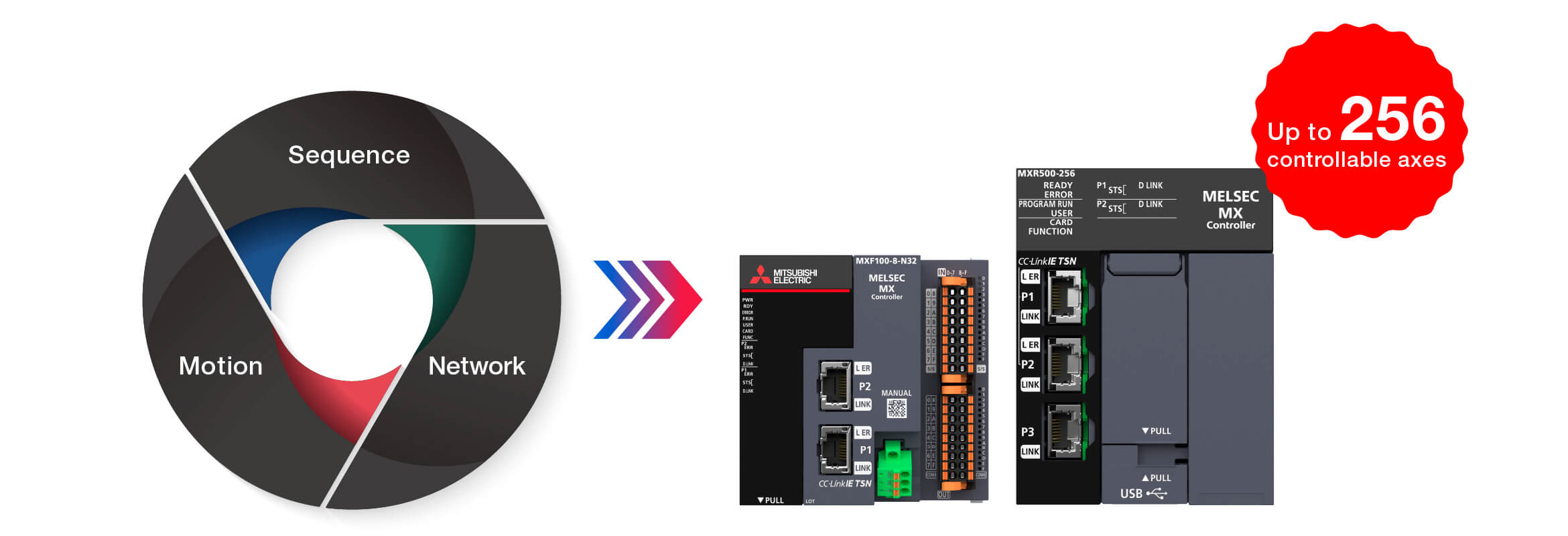

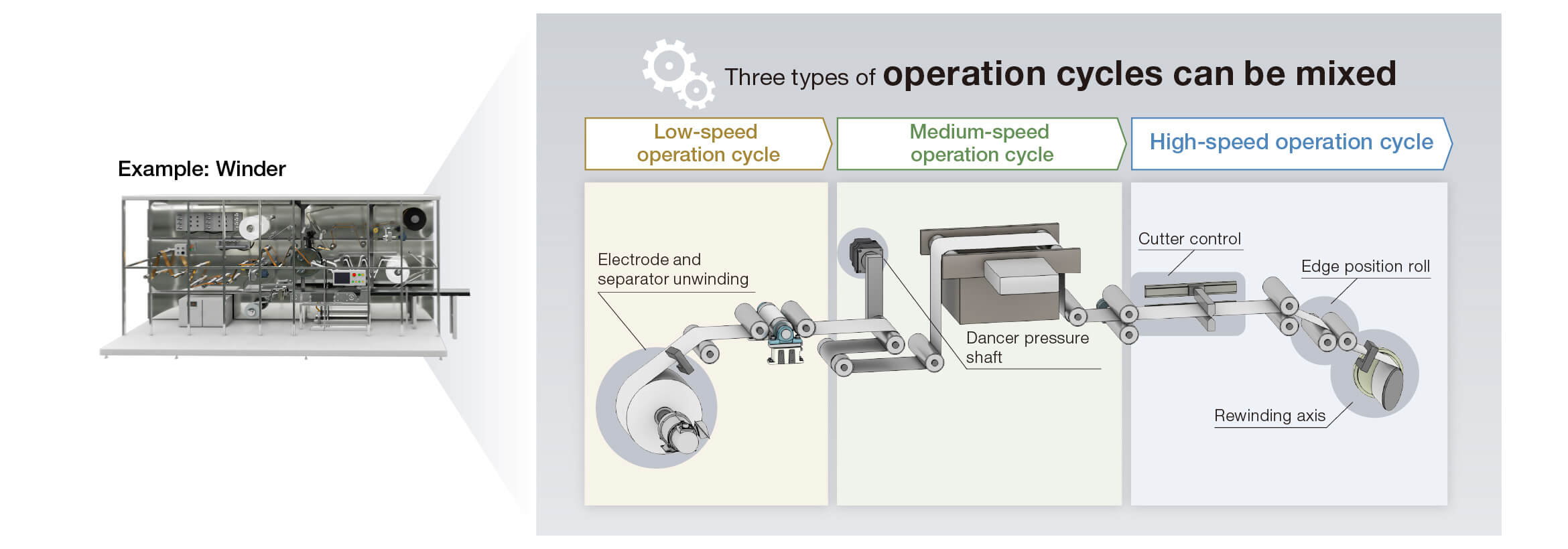

Accomplish multi-axis machine control with one controller

A high-performance multi-core MPU integrating three control types

Optimizing control performance of the entire system

Build an optimal system while balancing cost and performance

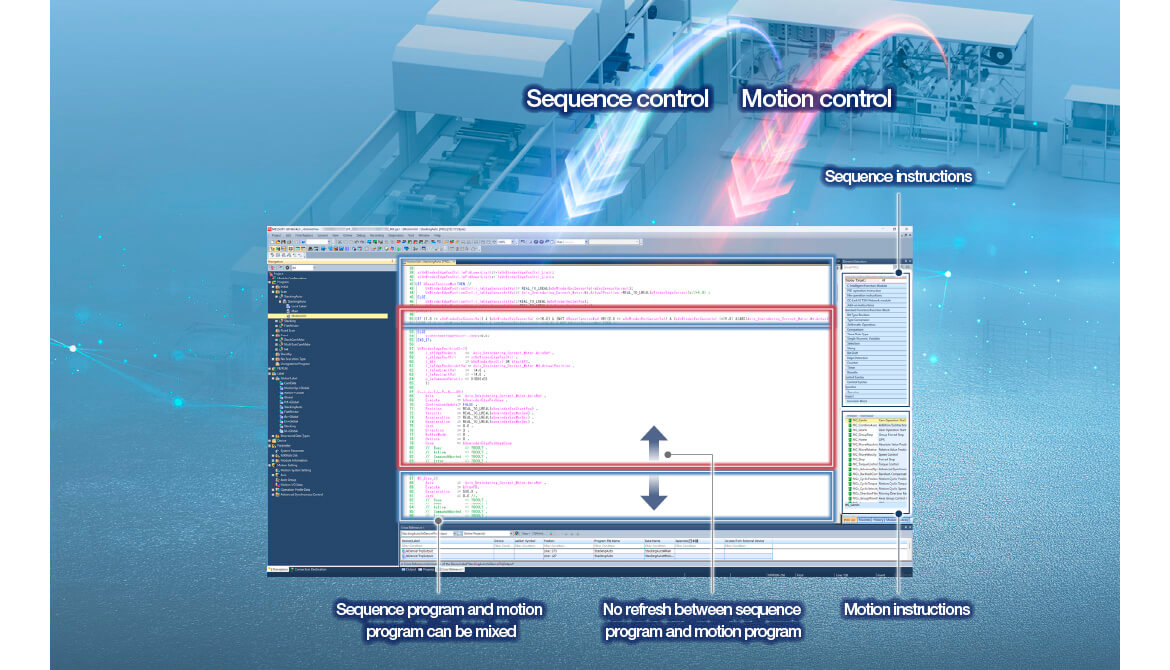

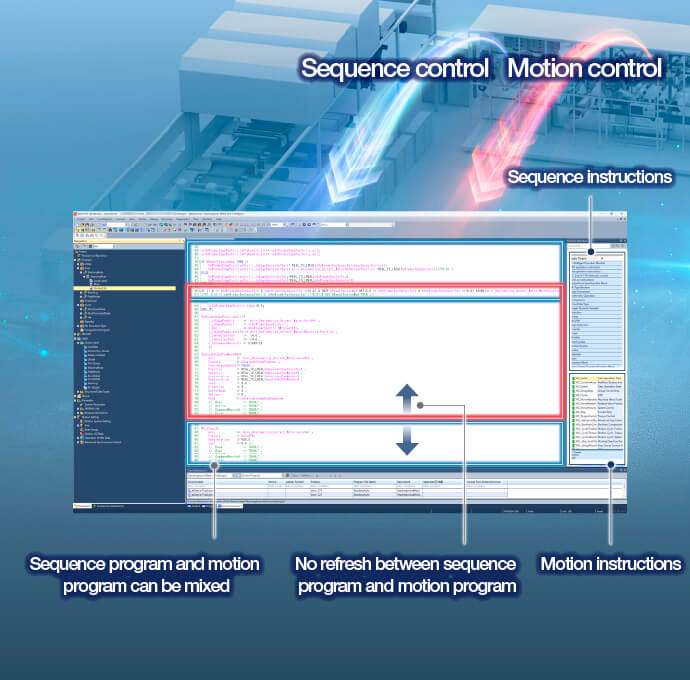

Enhanced engineering efficiency through tool integration

One tool for programming both sequence and motion control

Servo parameter setting are also configurable with GX Works3

The PLCopen®-compliant Motion Control FB interface is standardized, making it easier for others than the original programmer to understand program content, reducing design and maintenance time.

Improved programming and debugging efficiency through modular programming and change history management

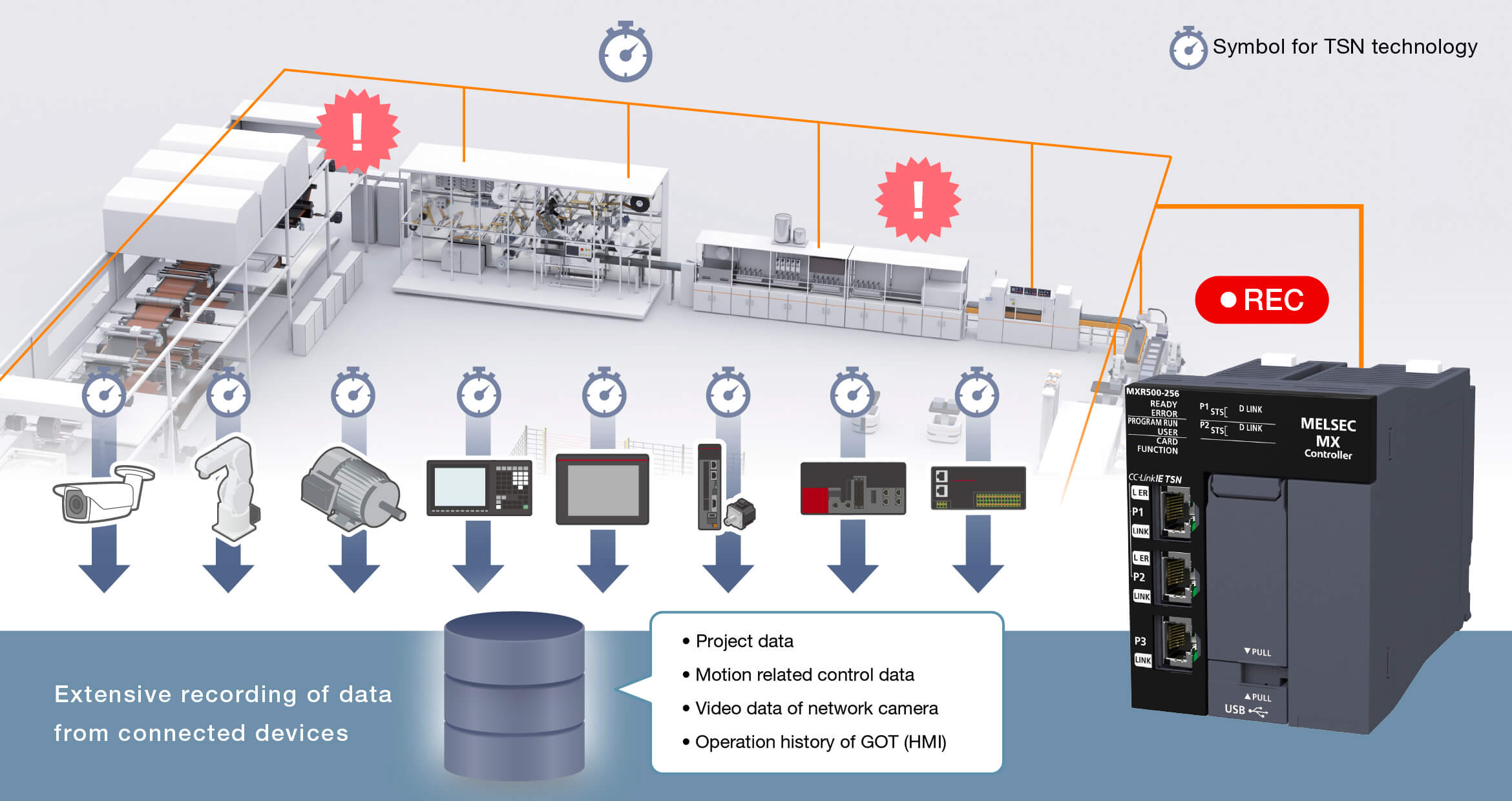

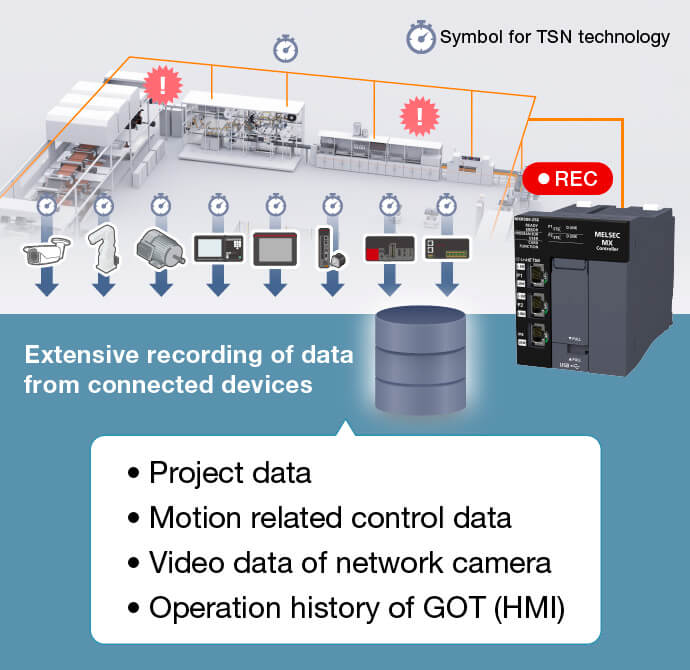

Recording function + AI-powered data flow analysis

Record the entire system's process and analyze data flows with AI

Quickly identify problems to dramatically reduce on-site downtime

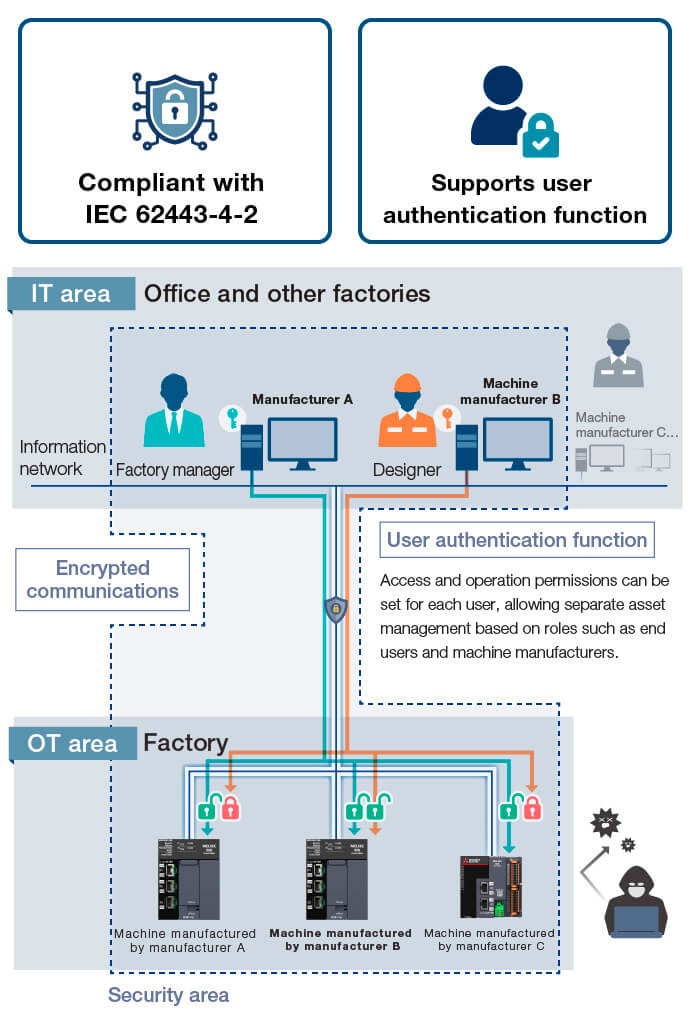

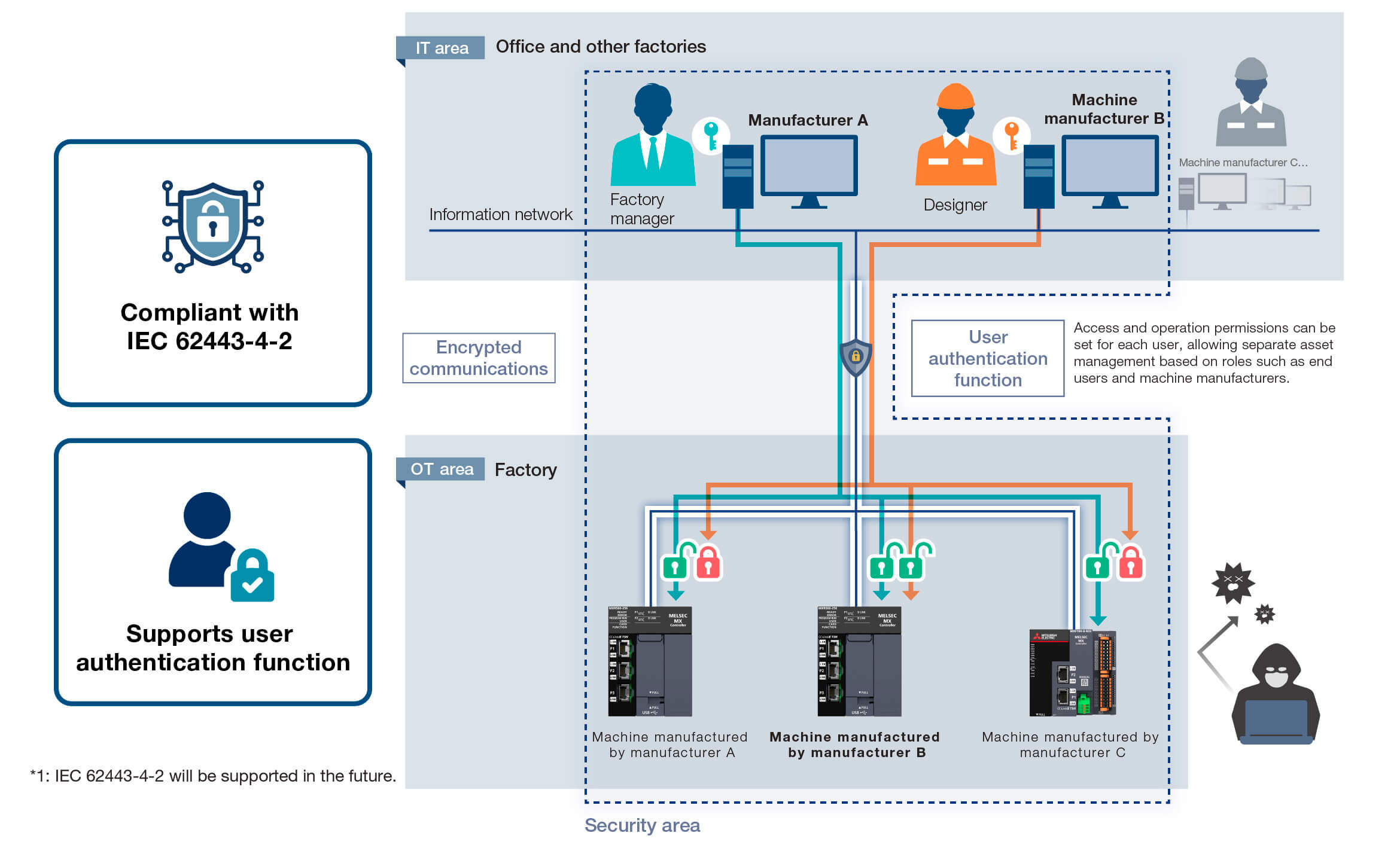

Compliant with the international security standard IEC 62443-4-2

*1： IEC 62443-4-2 will be supported in the future.

Prevents unauthorized access and eavesdropping to protect your assets and avoid equipment malfunctions

Compare features between the MX-R and MX-F models
