Channel isolated pulse input module

The channel isolated pulse input module is capable of up to 30k pulse/s for the DC input.

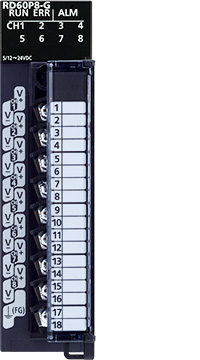

RD60P8-G

Features<sup>Multiple measurement functions and channel isolation are ideal for process control applications</sup>

  • Multiple measurements
  • Channel isolation

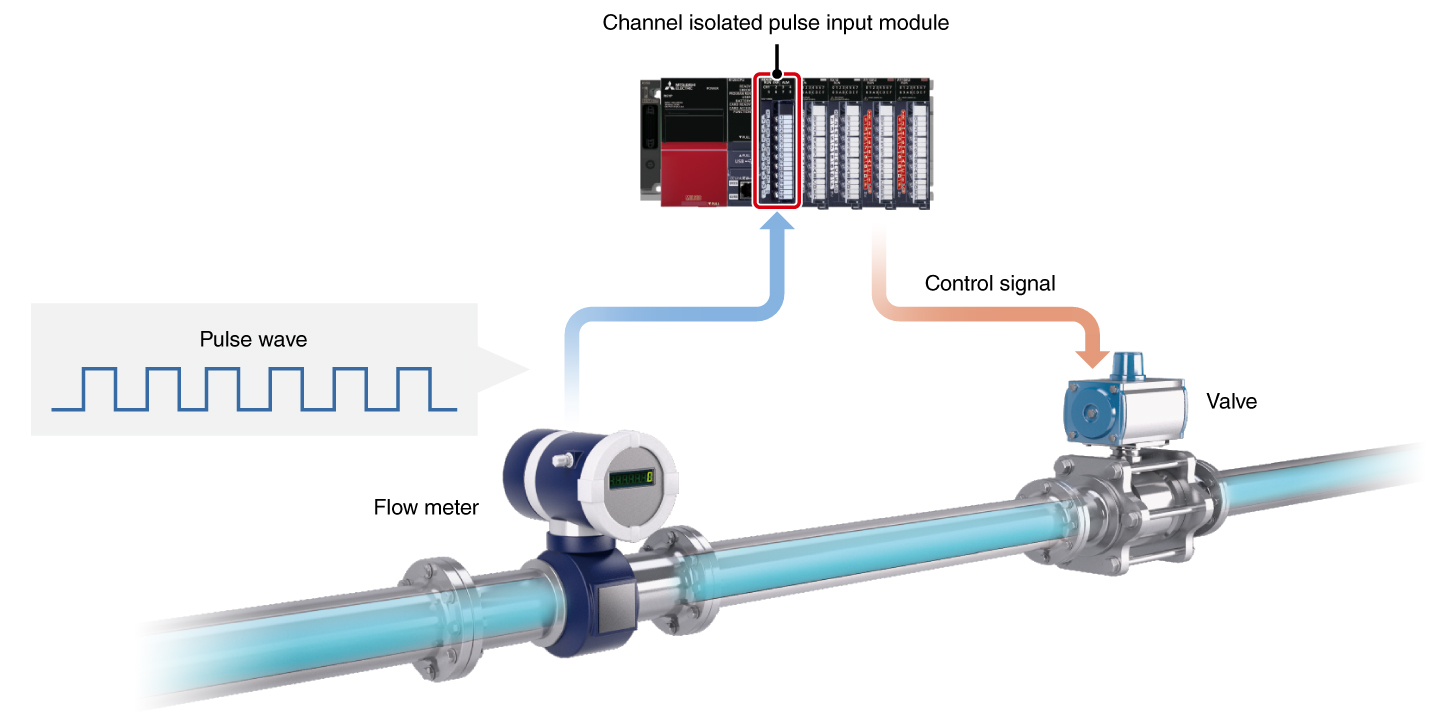

  • One module can measure the number of input pulse data for speed, rotation speed, and instantaneous flow rate and also measure quantity, length, and cumulative flow rate of 8 channels maximum
  • Galvanic channel isolation is included which prevents noise interference making it ideal for process control applications

Specifications<sup>Channel isolated pulse input module specifications</sup>

Item RD60P8-G
Number of channels 8
Withstand voltage Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute
1780 V AC for 1 minute between channels
Isolation resistance Between I/O terminals and programmable controller power supply: 10 MΩ or higher, at 500 V DC
10 MΩ or higher, at 500 V DC between channels
Count input signal
1-phase input ●
Signal level 5 V DC/12…24 V DC
Counter
Max. counting speed (pulse/s) 30k
Counting range Sampling pulse number: 16-bit unsigned binary (0…32767)
Accumulating count value: 32-bit unsigned binary (0…99999999)
Input pulse value: 32-bit unsigned binary (0…2147483647)
Count type Linear counter, ring counter
External interface*1
18-point screw terminal block ●
  • *1.For applicable options, please refer to the relevant product manual.
