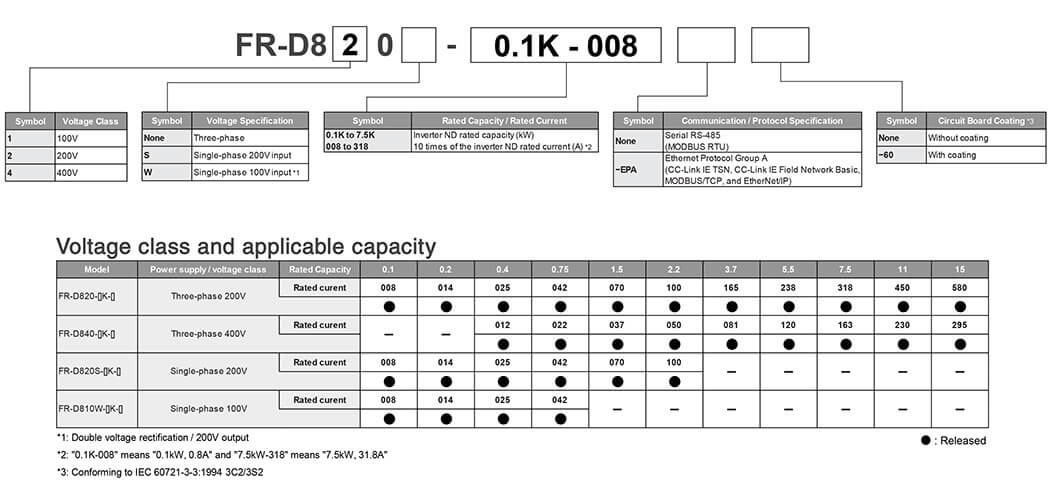

Global model number configuration
Mitsubishi Electric US, Industrial Automation material numbers for ordering
These are the material numbers for the FR-D800 Series (Standard) and FR-D800 Series (Ethernet) to use when ordering from MEAU. Model numbers will be included on the product itself.
FR-D800 Series (Standard) Jump to Ethernet Models
| Material Number | Model Number | HP (ND) |
AMPS (ND) |
HP (SLD) | AMPS (SLD)*1 |
|---|---|---|---|---|---|
| 1-Phase 100-120VAC Input / 3-Phase 200-240VAC Output | |||||
| D810W-008-60 | FR-D810W-0.1K-008-60 | 1/8 | 0.8 | - | - |
| D810W-014-60 | FR-D810W-0.2K-014-60 | 1/4 | 1.4 | - | - |
| D810W-025-60 | FR-D810W-0.4K-025-60 | 1/2 | 2.5 | - | - |
| D810W-042-60 | FR-D810W-0.75K-042-60 | 1 | 4.2 | - | - |
| 1-Phase 200-240V Input / 3-Phase 200-240VAC Output | |||||
| D820S-008-60 | FR-D820S-0.1K-008-60 | 1/8 | 0.8 | - | - |
| D820S-014-60 | FR-D820S-0.2K-014-60 | 1/4 | 1.4 | - | - |
| D820S-025-60 | FR-D820S-0.4K-025-60 | 1/2 | 2.5 | - | - |
| D820S-042-60 | FR-D820S-0.75K-042-60 | 1 | 4.2 | - | - |
| D820S-070-60 | FR-D820S-1.5K-070-60 | 2 | 7 | - | - |
| D820S-100-60 | FR-D820S-2.2K-100-60 | 3 | 10 | - | - |
| 3-Phase 200-240V Input & Output | |||||
| D820-008-60 | FR-D820-0.1K-008-60 | 1/8 | 0.8 | 1/4 | 1.4 (1.1) |
| D820-014-60 | FR-D820-0.2K-014-60 | 1/4 | 1.4 | 1/2 | 2.5 (2.0) |
| D820-025-60 | FR-D820-0.4K-025-60 | 1/2 | 2.5 | 1 | 4.2 (3.5) |
| D820-042-60 | FR-D820-0.75K-042-60 | 1 | 4.2 | 2 | 6.0 (5.1) |
| D820-070-60 | FR-D820-1.5K-070-60 | 2 | 7 | 3 | 10 (8.5) |
| D820-100-60 | FR-D820-2.2K-100-60 | 3 | 10 | 5 | 16.5 (12.0) |
| D820-165-60 | FR-D820-3.7K-165-60 | 5 | 16.5 | 7.5 | 23.8 (19.6) |
| D820-238-60 | FR-D820-5.5K-238-60 | 7.5 | 23.8 | 10 | 31.8 (26.0) |
| D820-318-60 | FR-D820-7.5K-318-60 | 10 | 31.8 | 15 | 45 (37.0) |
| D820-450-60 | FR-D820-11K-450-60 | 15 | 45 | 20 | 58 (48.0) |
| D820-580-60 | FR-D820-15K-580-60 | 20 | 58 | 25 | 72 (61.0) |
| 3-Phase 380-480V Input & Output | D840-012-60 | FR-D840-0.4K-012-60 | 1/2 | 1/2 | 1 | 2.2 (1.8) |
| D840-022-60 | FR-D840-0.75K-022-60 | 1 | 2.2 | 2 | 3.7 (3.0) |
| D840-037-60 | FR-D840-1.5K-037-60 | 2 | 3.7 | 3 | 5 (4.2) |
| D840-050-60 | FR-D840-2.2K-050-60 | 3 | 5 | 5 | 8.1 (6.8) |
| D840-081-60 | FR-D840-3.7K-081-60 | 5 | 8.1 | 7.5 | 12 (10.0) |
| D840-120-60 | FR-D840-5.5K-120-60 | 7.5 | 12 | 10 | 16.3 (13.8) |
| D840-163-60 | FR-D840-7.5K-163-60 | 10 | 16.3 | 15 | 23 (19.5) |
| D840-230-60 | FR-D840-11K-230-60 | 15 | 23 | 20 | 29.5 (25.0) |
| D840-295-60 | FR-D840-15K-295-60 | 20 | 29.5 | 25 | 38 (32.0) |
- *1: The value in parentheses is the rated output current when the low acoustic noise operation is performed with the surrounding air temperature exceeding 30°C while a 3 kHz or higher value is selected in Pr.72 PWM frequency selection.
FR-D800 Series (Ethernet) Jump to Standard Models
| Material Number | Model Number | HP (ND) |
AMPS (ND) |
HP (SLD) | AMPS (SLD)*1 |
|---|---|---|---|---|---|
| 1-Phase 100-120VAC Input / 3-Phase 200-240VAC Output | |||||
| D810W-008-EPA-60 | FR-D810W-0.1K-008-EPA-60 | 1/8 | 0.8 | - | - |
| D810W-014-EPA-60 | FR-D810W-0.2K-014-EPA-60 | 1/4 | 1.4 | - | - |
| D810W-025-EPA-60 | FR-D810W-0.4K-025-EPA-60 | 1/2 | 2.5 | - | - |
| D810W-042-EPA-60 | FR-D810W-0.75K-042-EPA-60 | 1 | 4.2 | - | - |
| 1-Phase 200-240V Input / 3-Phase 200-240VAC Output | |||||
| D820S-008-EPA-60 | FR-D820S-0.1K-008-EPA-60 | 1/8 | 0.8 | - | - |
| D820S-014-EPA-60 | FR-D820S-0.2K-014-EPA-60 | 1/4 | 1.4 | - | - |
| D820S-025-EPA-60 | FR-D820S-0.4K-025-EPA-60 | 1/2 | 2.5 | - | - |
| D820S-042-EPA-60 | FR-D820S-0.75K-042-EPA-60 | 1 | 4.2 | - | - |
| D820S-070-EPA-60 | FR-D820S-1.5K-070-EPA-60 | 2 | 7 | - | - |
| D820S-100-EPA-60 | FR-D820S-2.2K-100-EPA-60 | 3 | 10 | - | - |
| 3-Phase 200-240V Input & Output | |||||
| D820-008-EPA-60 | FR-D820-0.1K-008-EPA-60 | 1/8 | 0.8 | 1/4 | 1.4 (1.1) |
| D820-014-EPA-60 | FR-D820-0.2K-014-EPA-60 | 1/4 | 1.4 | 1/2 | 2.5 (2.0) |
| D820-025-EPA-60 | FR-D820-0.4K-025-EPA-60 | 1/2 | 2.5 | 1 | 4.2 (3.5) |
| D820-042-EPA-60 | FR-D820-0.75K-042-EPA-60 | 1 | 4.2 | 2 | 6.0 (5.1) |
| D820-070-EPA-60 | FR-D820-1.5K-070-EPA-60 | 2 | 7 | 3 | 10 (8.5) |
| D820-100-EPA-60 | FR-D820-2.2K-100-EPA-60 | 3 | 10 | 5 | 16.5 (12.0) |
| D820-165-EPA-60 | FR-D820-3.7K-165-EPA-60 | 5 | 16.5 | 7.5 | 23.8 (19.6) |
| D820-238-EPA-60 | FR-D820-5.5K-238-EPA-60 | 7.5 | 23.8 | 10 | 31.8 (26.0) |
| D820-318-EPA-60 | FR-D820-7.5K-318-EPA-60 | 10 | 31.8 | 15 | 45 (37.0) |
| D820-450-EPA-60 | FR-D820-11K-450-EPA-60 | 15 | 45 | 20 | 58 (48.0) |
| D820-580-EPA-60 | FR-D820-15K-580-EPA-60 | 20 | 58 | 25 | 72 (61.0) |
| 3-Phase 380-480V Input & Output | D840-012-EPA-60 | FR-D840-0.4K-012-EPA-60 | 1/2 | 1/2 | 1 | 2.2 (1.8) |
| D840-022-EPA-60 | FR-D840-0.75K-022-EPA-60 | 1 | 2.2 | 2 | 3.7 (3.0) |
| D840-037-EPA-60 | FR-D840-1.5K-037-EPA-60 | 2 | 3.7 | 3 | 5 (4.2) |
| D840-050-EPA-60 | FR-D840-2.2K-050-EPA-60 | 3 | 5 | 5 | 8.1 (6.8) |
| D840-081-EPA-60 | FR-D840-3.7K-081-EPA-60 | 5 | 8.1 | 7.5 | 12 (10.0) |
| D840-120-EPA-60 | FR-D840-5.5K-120-EPA-60 | 7.5 | 12 | 10 | 16.3 (13.8) |
| D840-163-EPA-60 | FR-D840-7.5K-163-EPA-60 | 10 | 16.3 | 15 | 23 (19.5) |
| D840-230-EPA-60 | FR-D840-11K-230-EPA-60 | 15 | 23 | 20 | 29.5 (25.0) |
| D840-295-EPA-60 | FR-D840-15K-295-EPA-60 | 20 | 29.5 | 25 | 38 (32.0) |
- *1: The value in parentheses is the rated output current when the low acoustic noise operation is performed with the surrounding air temperature exceeding 30°C while a 3 kHz or higher value is selected in Pr.72 PWM frequency selection.
| Load Rating | Overload Current Rating |
|---|---|
| Normal Duty (ND) | 150% 60 s, 200% 0.5 s (inverse-time characteristics) at surrounding air temperature of 50°C |
| Super Light Duty (SLD) | 110% 60 s, 120% 3 s (inverse-time characteristics) at surrounding air temperature of 40°C |
